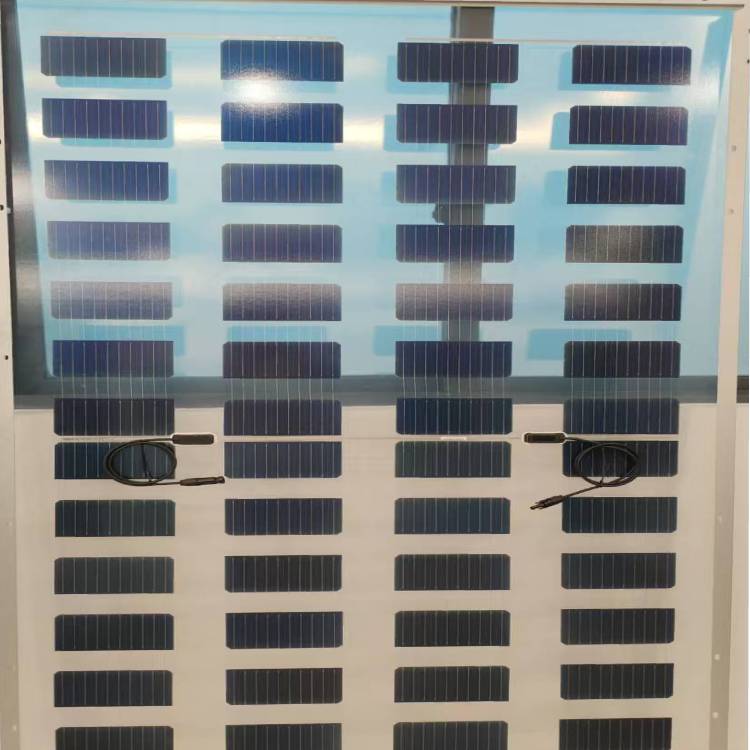

45% Semi-transparent 300W solar power PV modules

  • 45% Semi-transparent 300W solar power PV modules Manufacturers, 45% Semi-transparent 300W solar power PV modules Factory, Supply 45% Semi-transparent 300W solar power PV modules
  • 45% Semi-transparent 300W solar power PV modules Manufacturers, 45% Semi-transparent 300W solar power PV modules Factory, Supply 45% Semi-transparent 300W solar power PV modules
  • 45% Semi-transparent 300W solar power PV modules Manufacturers, 45% Semi-transparent 300W solar power PV modules Factory, Supply 45% Semi-transparent 300W solar power PV modules
45% Semi-transparent 300W solar power PV modules
  • HANGZHOU,CHINA

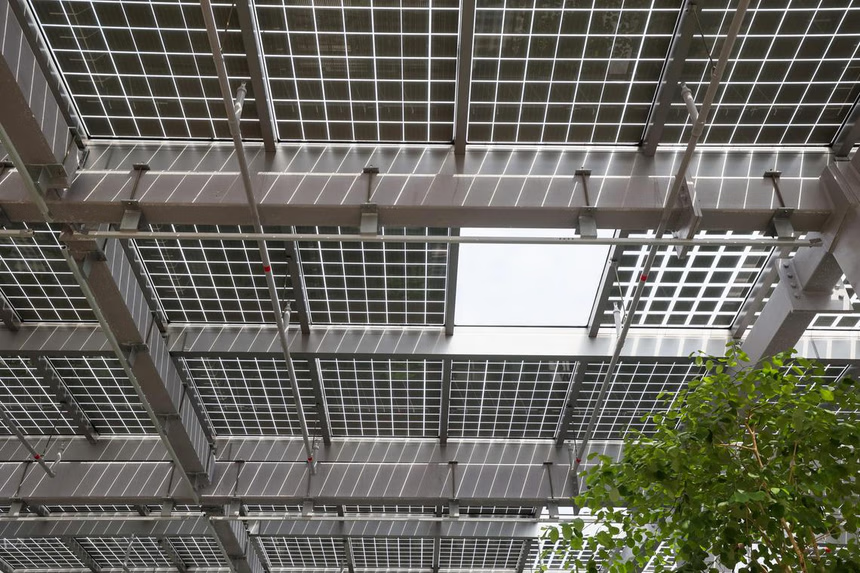

These transparent transmission panels have wide applications in agriculture and construction. In greenhouses, they efficiently capture sunlight to generate energy while allowing optimal light penetration for crop photosynthesis, with customizable transmission levels suited for fruits, vegetables, and seedlings. For traditional building renovations, they replace existing windows or skylights, preserving architectural styles while enabling photovoltaic power generation to supply clean energy indoors. In agricultural structures like livestock farms and storage sheds, they serve as roofs or side walls, integrating lighting, insulation, and self-sufficiency in electricity. This seamless blend of modern technology with agricultural production and traditional architecture boosts green, low-carbon transformation.

45% Semi-transparent 300W solar power PV modules :



BIPV solar modules BIPV PV modulesTransparent BIPV Glass

Agricultural buildings Greenhouses Traditional buildings :

Capture the sun and let the light in at the same time.

Customisable Transmission level.

Perfect combination of modern technology and architecture.

BIPV solar modules BIPV PV modules



Transparent BIPV Glass

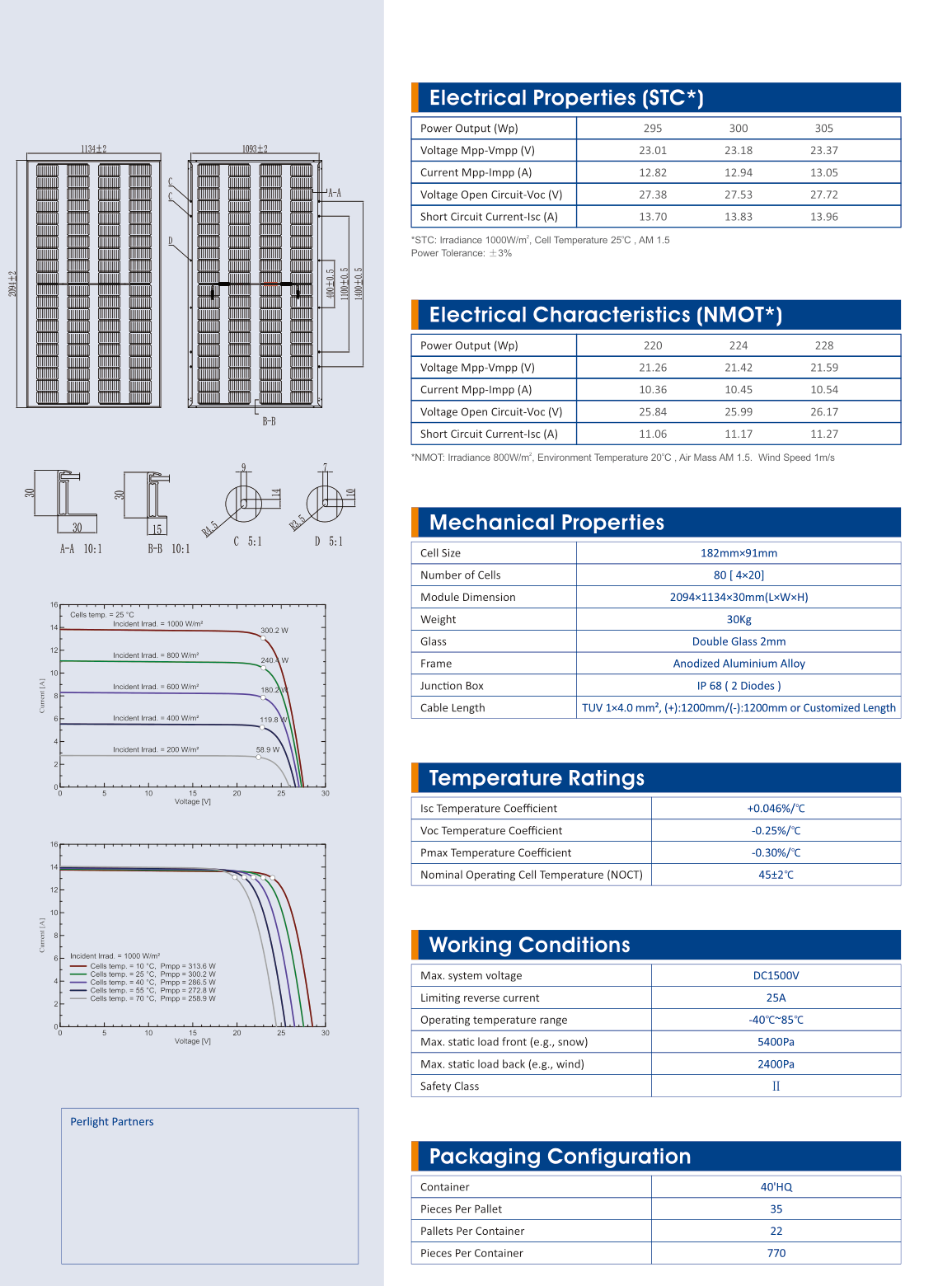

Electrical Properties(STC*)

BIPV solar modules


Power Output (Wp)290
300305
Voltage Mpp-Vmpp (V)23.0123.1823.37
Current Mpp-Impp (A)12.8212.9413.05
Voltage Open Circuit-Voc (V)27.3827.5327.72
Short Circuit Current-Isc (A)13.7013.8313.96

BIPV PV modules*STC: Irradiance 1000W/m, Cell Temperature 25℃ , AM 1.5

  Power Tolerance: ±3%



Electrical Characteristics (NMOT*)

Transparent BIPV Glass


Power Output (Wp)220
224228
Voltage Mpp-Vmpp (V)21.2621.4221.59
Current Mpp-Impp (A)10.3610.4510.54
Voltage Open Circuit-Voc (V)25.8425.9926.17
Short Circuit Current-Isc (A)11.0611.1711.27
*NMOT: Irradiance 800W/m, Environment Temperature 20℃ , Air Mass AM 1.5. Wind Speed 1m/s



Mechanical Properties



Cell Size182mm×91mm
Number of Cells80 [4×20]

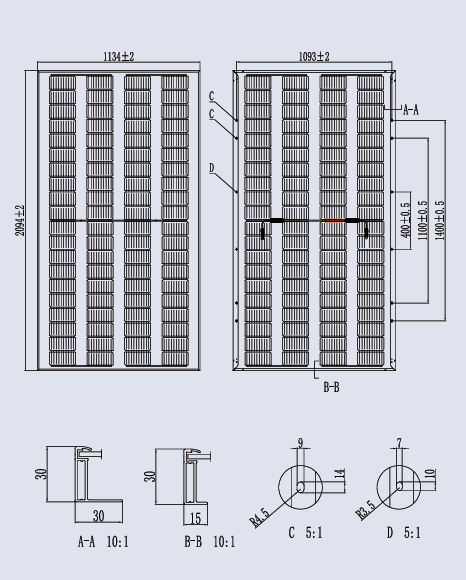

Module Dimension2094×1134×30mm(L×W×H)
Weight30Kg

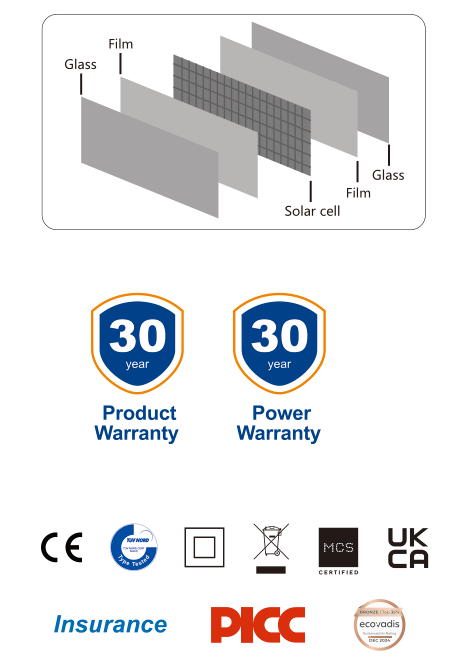

GlassDouble Glass 2mm
FrameAnodized Aluminium Alloy
Junction BoxIP 68 (2 Diodes)
Cable LengthTUV 1×4.0mm², (+)1200mm/(-)1200mm or Customized Length




Temperature Ratings


Isc Temperature Coefficient+0.046%/℃
Voc Temperature Coefficient-0.25%/℃
Pmax Temperature Coefficient-0.30%/℃
Nominal Operating Cell Temperature (NOCT)45±2℃



Working Conditions


Max. system voltageDC1500V
Limiting reverse current25A
Operating temperature range-40℃~85℃
Max. static load front (e.g., snow)5400Pa
Max. static load back (e.g., wind)2400Pa
Safety ClassII




Packaging Configuration


Container40'HQ
Pieces Per Pallet35
Pallets Per Container22
Pieces Per Container770




BIPV solar modules
