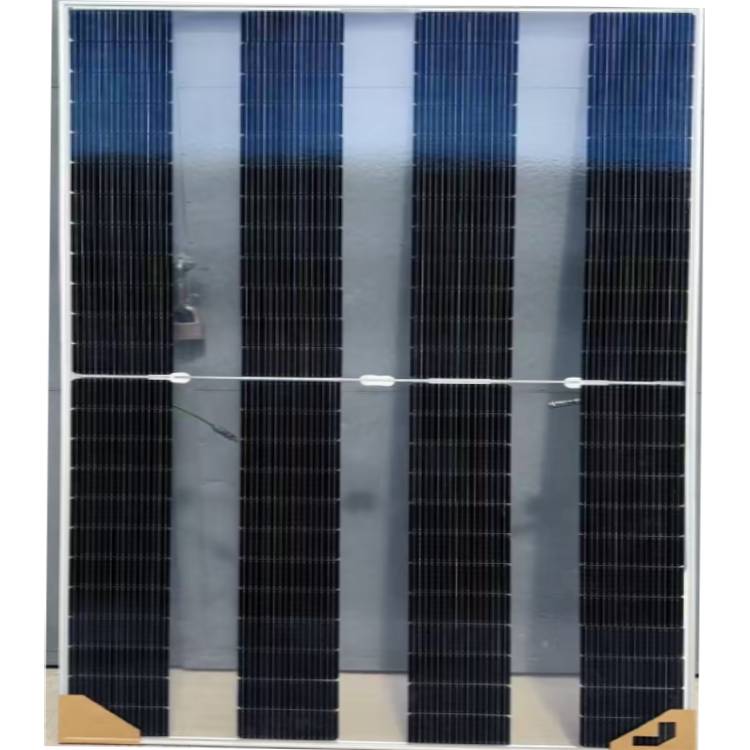

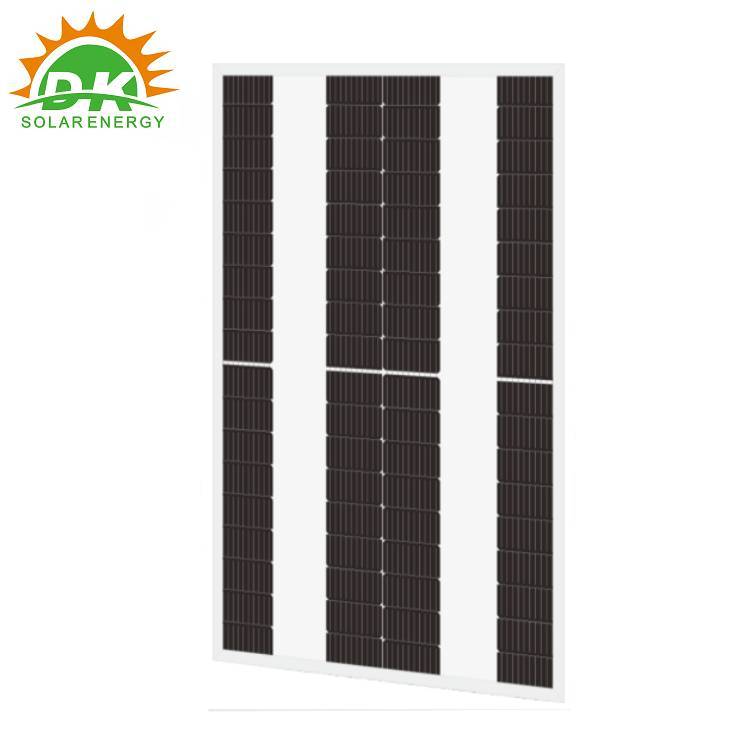

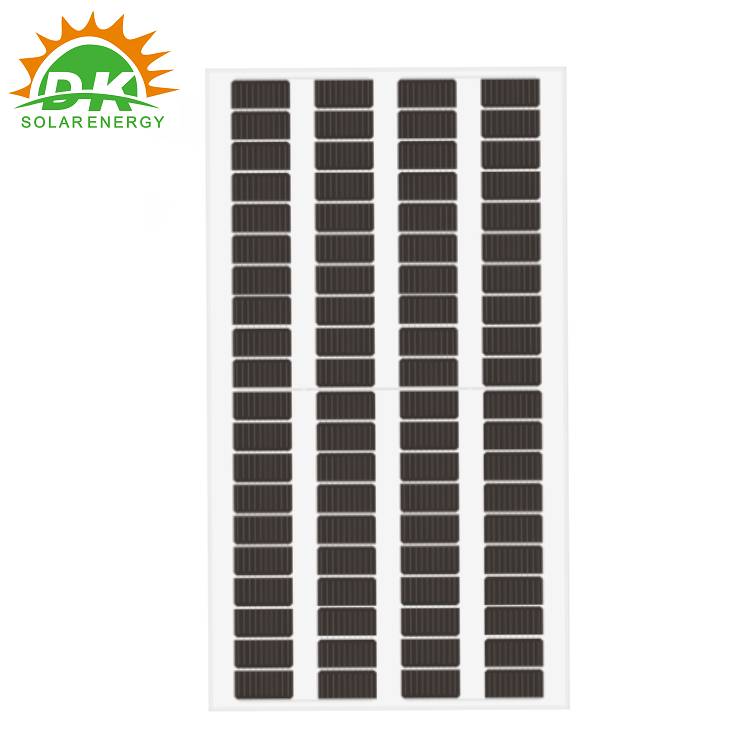

35% light transmission transparent solar BIPV modules for agrivoltaic use

35% light transmission transparent solar BIPV modules for agrivoltaic use

Product origin HANGZHOU,CHINA

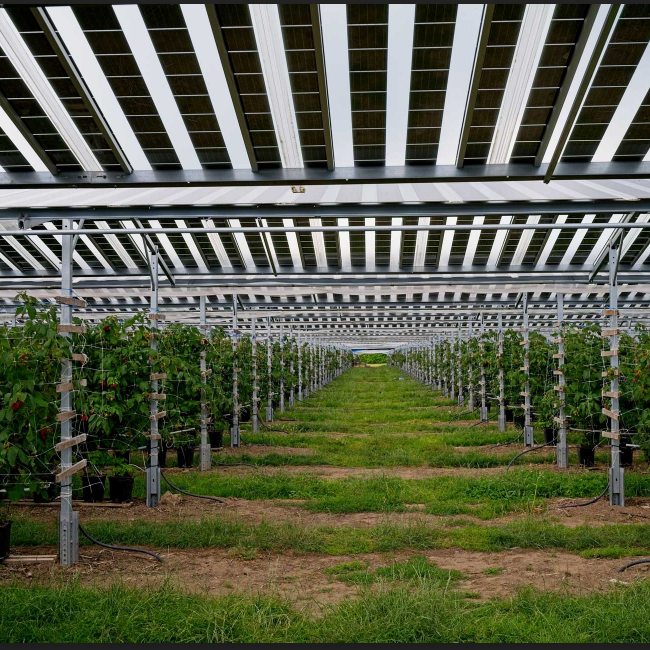

35% transmission transparent solar BIPV modules fit greenhouses: 35% light fuels photosynthesis, surplus generates power for systems. They replace glass, slashing costs, blending agriculture with renewables seamlessly.

35% light transmission transparent solar BIPV modules for agrivoltaic use :

BIPV PV modules for agrivoltaic project Transparent BIPV Glass

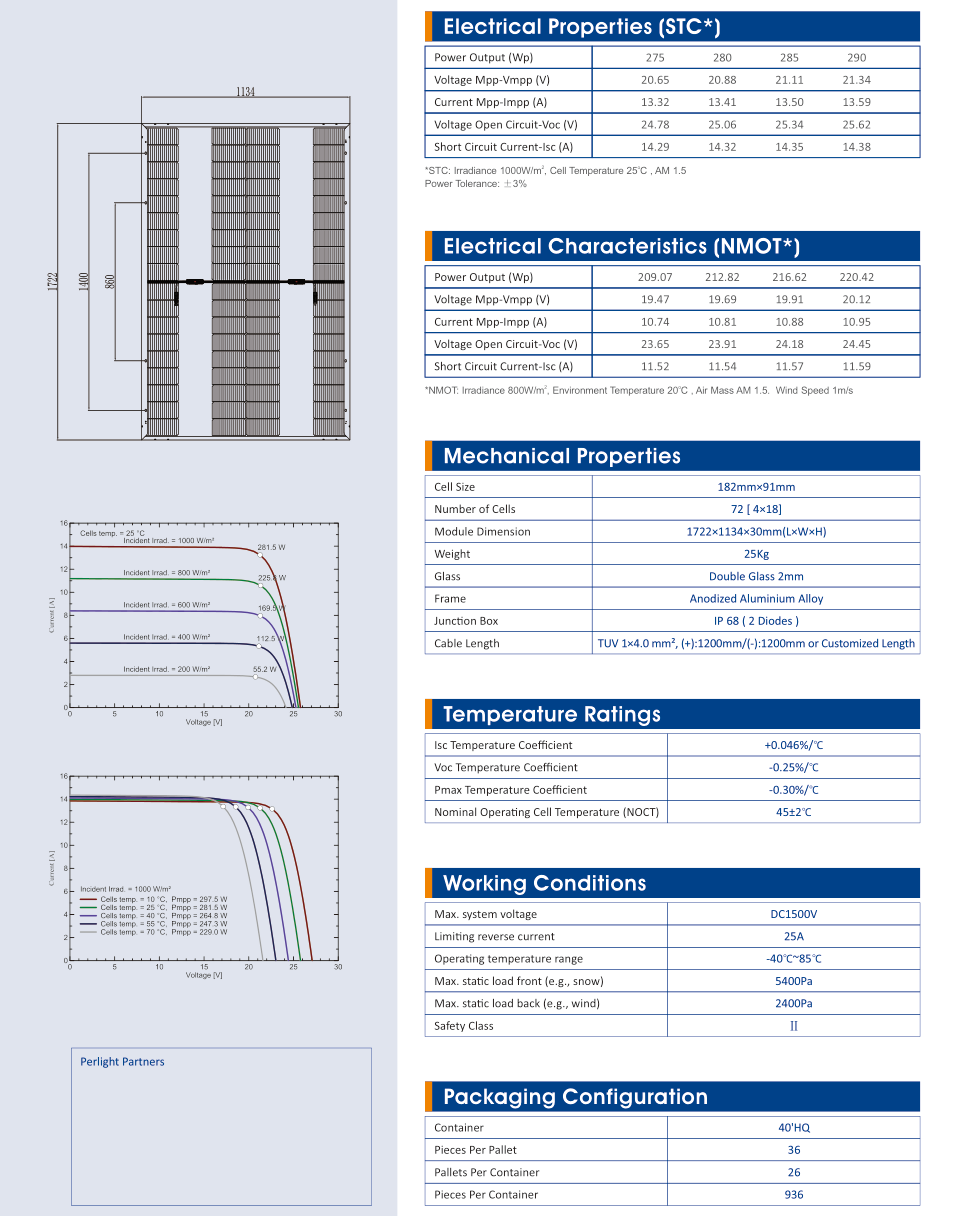

Electrical Properties(STC*)

green house BIPV solar modules

Power Output (Wp)	275	280	285	290
Voltage Mpp-Vmpp (V)	20.65	20.88	21.11	21.34
Current Mpp-Impp (A)	13.32	13.41	13.50	13.59
Voltage Open Circuit-Voc (V)	24.78	25.06	25.34	25.62
Short Circuit Current-Isc (A)	14.29	14.32	14.35	14.38

BIPV PV modules for agrivoltaic project *STC: Irradiance 1000W/m, Cell Temperature 25C , AM 1.5

Power Tolerance: ±3%

Electrical Characteristics (NMOT*)

Transparent BIPV Glass

Power Output (Wp)	209.07	212.82	216.62	220.42
Voltage Mpp-Vmpp (V)	19.47	19.69	19.91	20.12
Current Mpp-Impp (A)	10.74	10.81	10.88	10.95
Voltage Open Circuit-Voc (V)	23.65	23.91	24.18	24.45
Short Circuit Current-Isc (A)	11.52	11.54	11.57	11.59

*NMOT: Irradiance 800W/m, Environment Temperature 20C , Air Mass AM 1.5. Wind Speed 1m/s

Mechanical Properties

Cell Size	182mm×91mm
Number of Cells	72 [4×18]

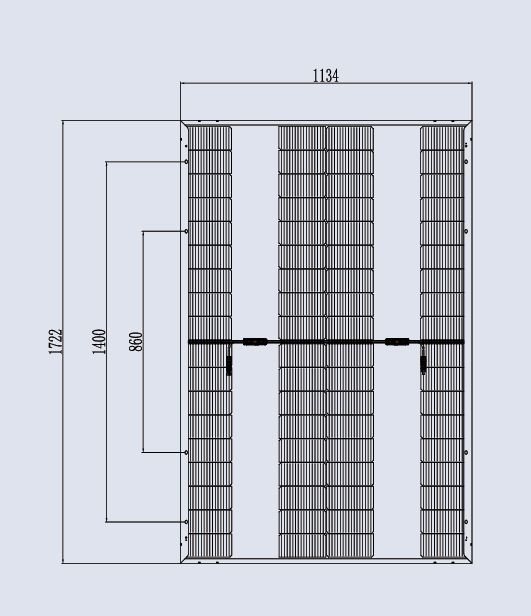

Module Dimension	1722×1134×30mm(L×W×H)
Weight	25Kg
Glass	Double Glass 2mm
Frame	Anodized Aluminium Alloy
Junction Box	IP 68 (2 Diodes)
Cable Length	TUV 1×4.0mm², (+)1200mm/(-)1200mm or Customized Length

Temperature Ratings

Isc Temperature Coefficient	+0.046%/℃
Voc Temperature Coefficient	-0.25%/℃
Pmax Temperature Coefficient	-0.30%/℃
Nominal Operating Cell Temperature (NOCT)	45±2℃

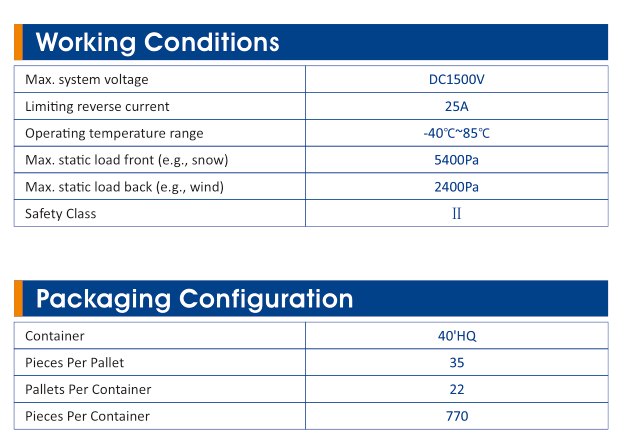

Working Conditions

Max. system voltage	DC1500V
Limiting reverse current	25A
Operating temperature range	-40℃~85℃
Max. static load front (e.g., snow)	5400Pa
Max. static load back (e.g., wind)	2400Pa
Safety Class	II
