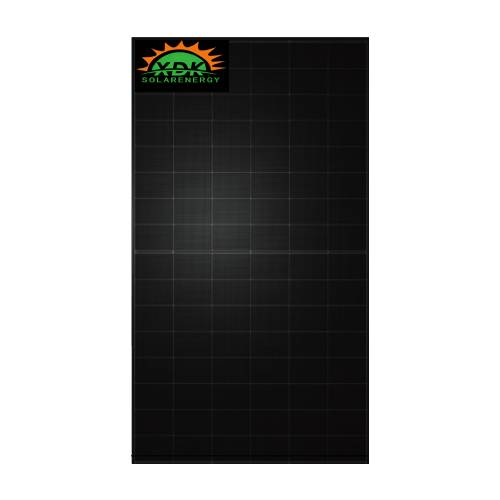

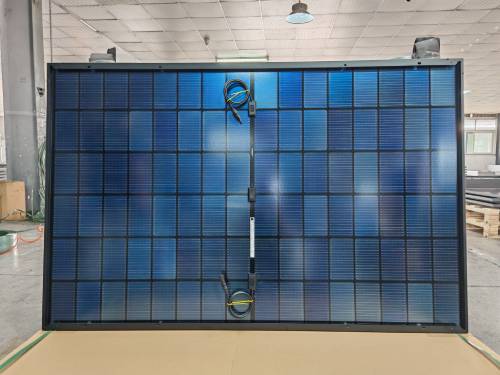

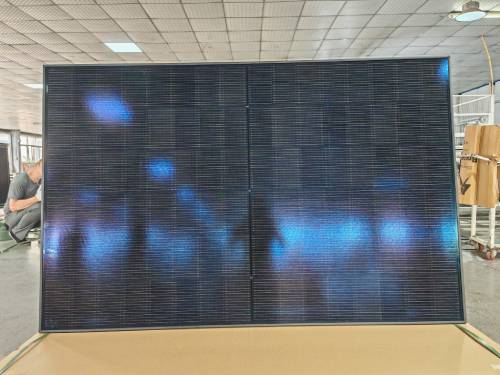

430W-450W Power Double Glass Topcon Half-Cell Mono Black Solar Module

  • 430W-450W Power Double Glass Topcon Half-Cell Mono Black Solar Module Manufacturers, 430W-450W Power Double Glass Topcon Half-Cell Mono Black Solar Module Factory, Supply 430W-450W Power Double Glass Topcon Half-Cell Mono Black Solar Module
  • 430W-450W Power Double Glass Topcon Half-Cell Mono Black Solar Module Manufacturers, 430W-450W Power Double Glass Topcon Half-Cell Mono Black Solar Module Factory, Supply 430W-450W Power Double Glass Topcon Half-Cell Mono Black Solar Module
  • 430W-450W Power Double Glass Topcon Half-Cell Mono Black Solar Module Manufacturers, 430W-450W Power Double Glass Topcon Half-Cell Mono Black Solar Module Factory, Supply 430W-450W Power Double Glass Topcon Half-Cell Mono Black Solar Module
430W-450W Power Double Glass Topcon Half-Cell Mono Black Solar Module
  • XinDongke
  • HANGZHOU,CHINA
  • 15-20DAYS
  • 1MW/Month

High Power Output module enhances power and reliability via better light trapping and current collection. It delivers outstanding low-light performance, low LID for higher energy generation, and better temperature coefficient with passivating contact cell technology. Featuring excellent PID resistance through optimized production and material control, it has enhanced mechanical load capacity (2400Pa wind, 5400Pa snow) and performs reliably in harsh environments including deserts, farms and coastlines.

430W-450W Power Double Glass Topcon Half-Cell Mono Black Solar Module


MODULE FEATURES:

  • High Power Output

      Better light trapping and current collection to improve module power output and reliability;

  • Outstanding Low Light Performance

      Higher power output even under low-light environments like on cloudy or foggy days;

  • Low LID (Light Induced Degradation)

      Low LID naturally which can increase power generation;

  • Better Temperature Coefficient

    Higher power generation under working conditions, thanks to passivating contact cell technology;

  • PID Resistance

    Excellent Anti-PID performance guarantee via optimized mass-production process and materials control;

  • Enhanced Mechanical Load

    Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal);

  • ithstanding Harsh Environment

    Reliable quality leads to a better sustainability even in harsh environment like desert, farm and coastline;

all-black solar panel

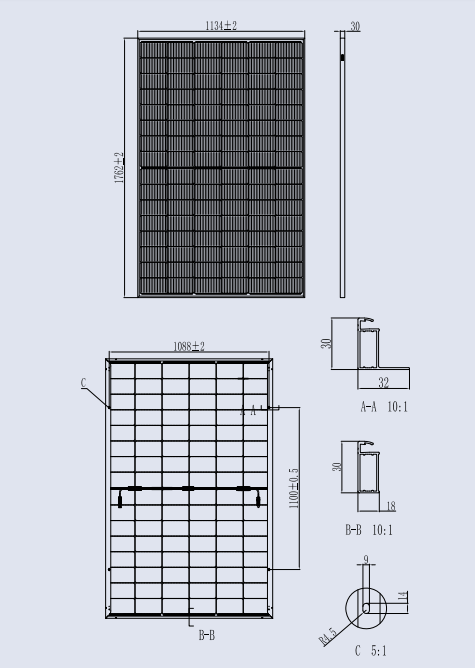

Module Drawing




Topcon solar module high performance solar panel

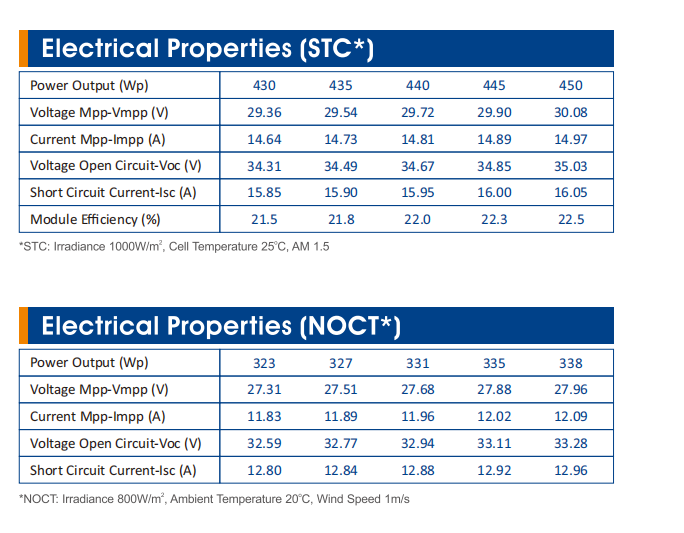

Electrical Properties ( STC*)



Power Output (Wp)430435440445450
Voltage Mpp-Vmpp (V)29.3629.5429.7229.9030.08
Current Mpp-Impp (A)14.6414.7314.8114.8914.97
Voltage Open Circuit-Voc (V)34.3134.4934.6734.8535.03
Short Circuit Current-Isc (A)15.8515.9015.9516.0016.05
Module Efficiency (%)21.521.822.022.3

*STC: Irradiance 1000W/m², Cell Temperature 25°C, AM 1.5

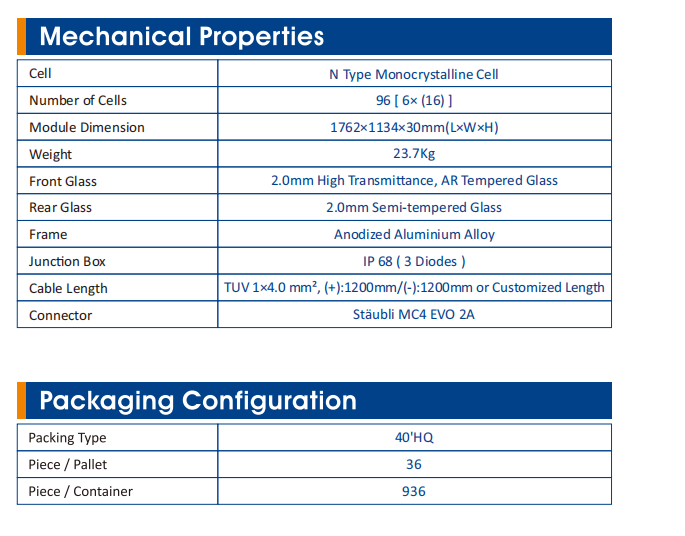

Electrical Properties



CellN Type Monocrystalline Cell
Number of Cells96 [ 6× (16) ]
Module Dimension1762×1134×30mm(L×W×H)
Weight23.7Kg
Front Glass2.0mm High Transmittance, AR Tempered Glass
Rear Glass2.0mm Semi-tempered Glass
FrameAnodized Aluminium Alloy
Junction BoxIP 68 ( 3 Diodes )
Cable LengthTUV 1×4.0 mm², (+):1200mm/(-):1200mm or Customized Length
ConnectorStäubli MC4 EVO 2A


Packaging Configuration


Packing Type40'HQ
Piece/Pallet36
Piece/Container936

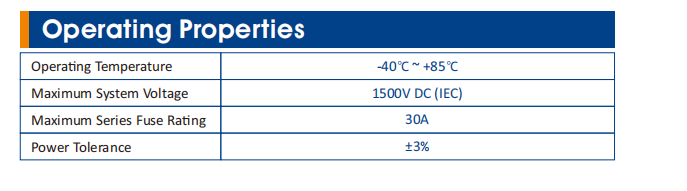

Operating Properties



Operating Temperature-40℃ ~ +85℃
Maximum System Voltage1500V DC (IEC)
Maximum Series Fuse Rating30A
Power Tolerance±3%

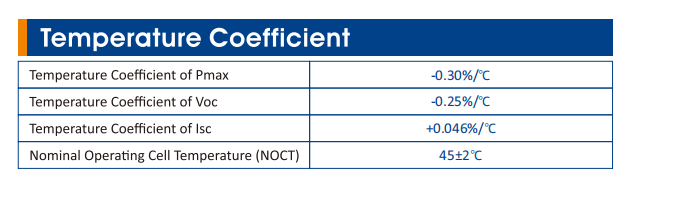

Temperature Coefficient



Temperature Coefficient of Pmax-0.30%/℃
Temperature Coefficient of Voc-0.25%/℃
Temperature Coefficient of Isc+0.046%/℃
Nominal Operating Cell Temperature (NOCT)45±2℃
