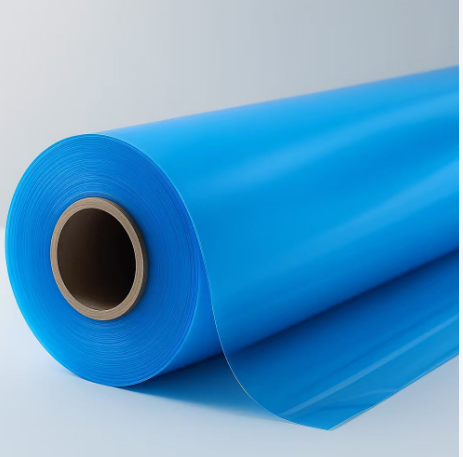

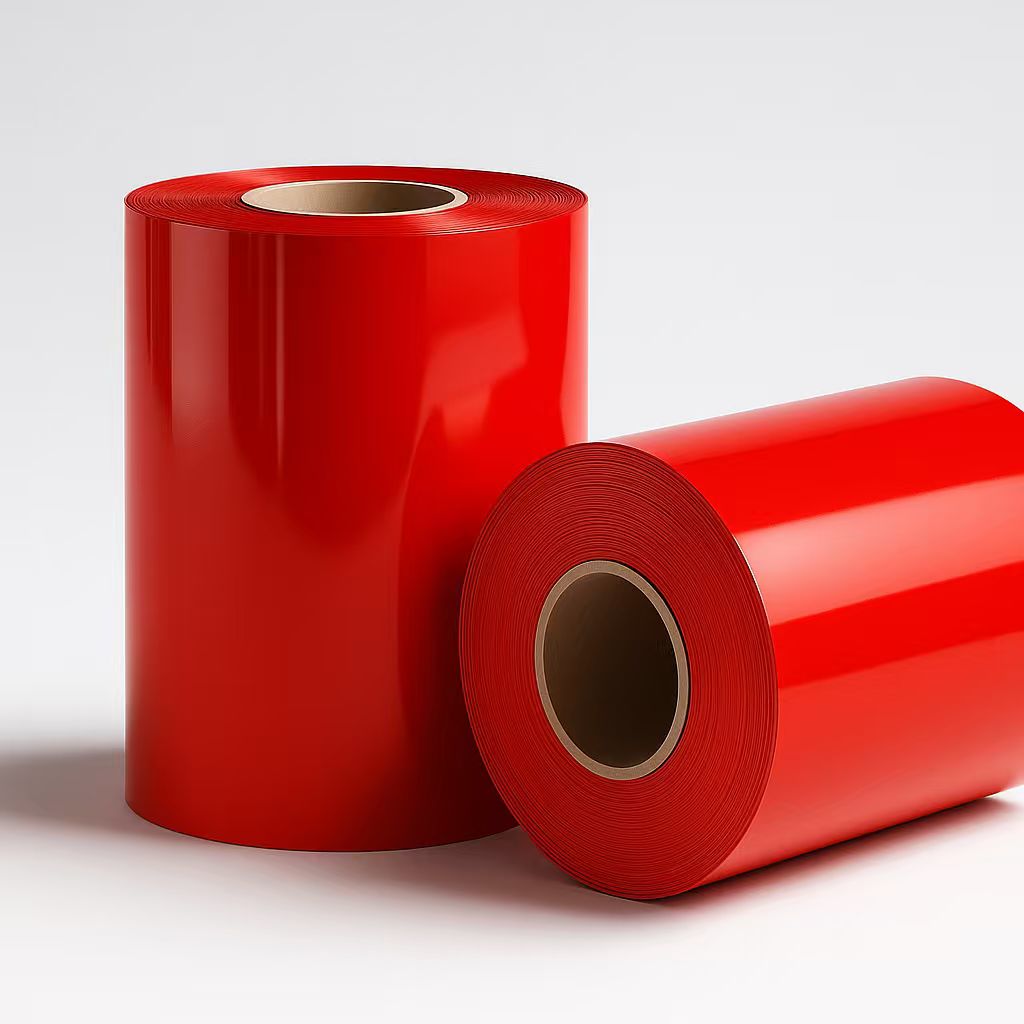

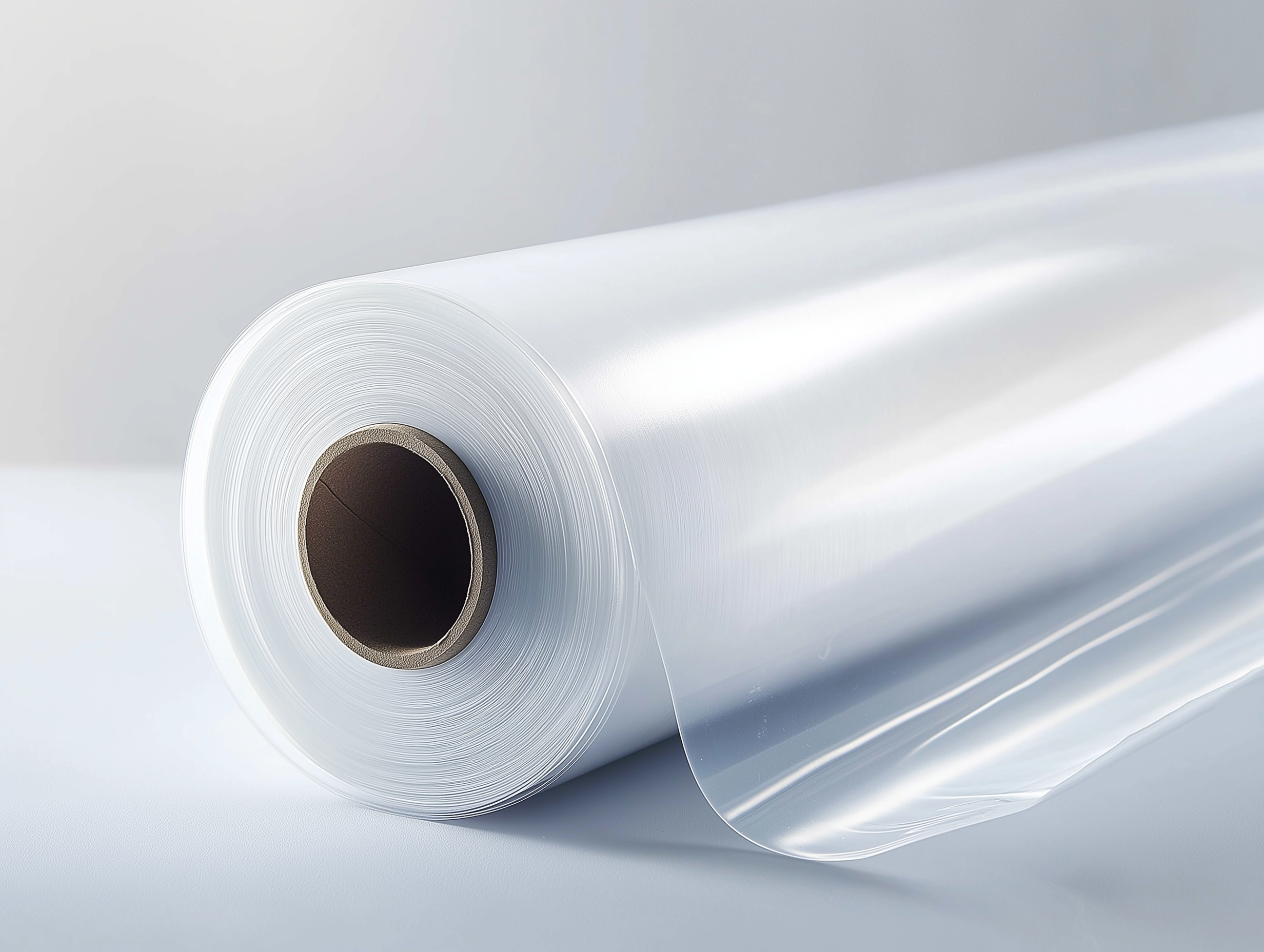

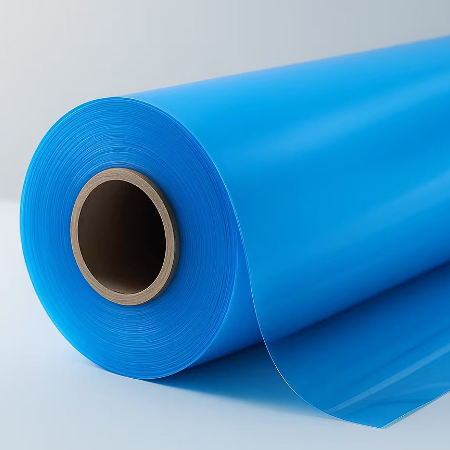

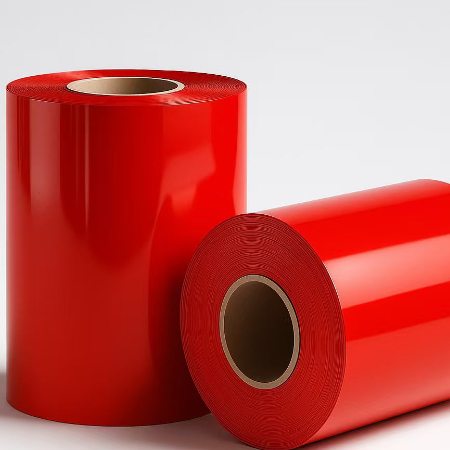

ETFE Film

ETFE Fluoropolymer melt extruded film:

• ETFE Film Characteristics

• Continuous service temperature range from -80°C to 165°C

• Maximum service temperature up to 230°C

• Excellent resistance of high and low temperature

• Excellent non-stick properties and low coefficient of surface friction

• Chemically inert to most chemicals and solvents

• Free of plasticizers, processing aids or additives

• Excellent weather resistance

• Excellent electrical performance over a wide range of frequencies and temperatures

• Excellent light transmission and clarity (natural light transmission >92%)

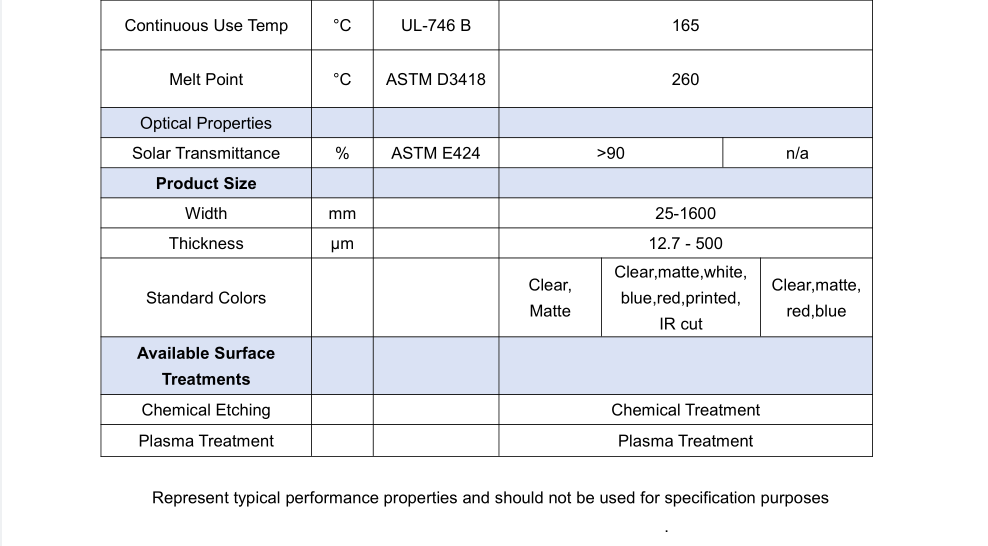

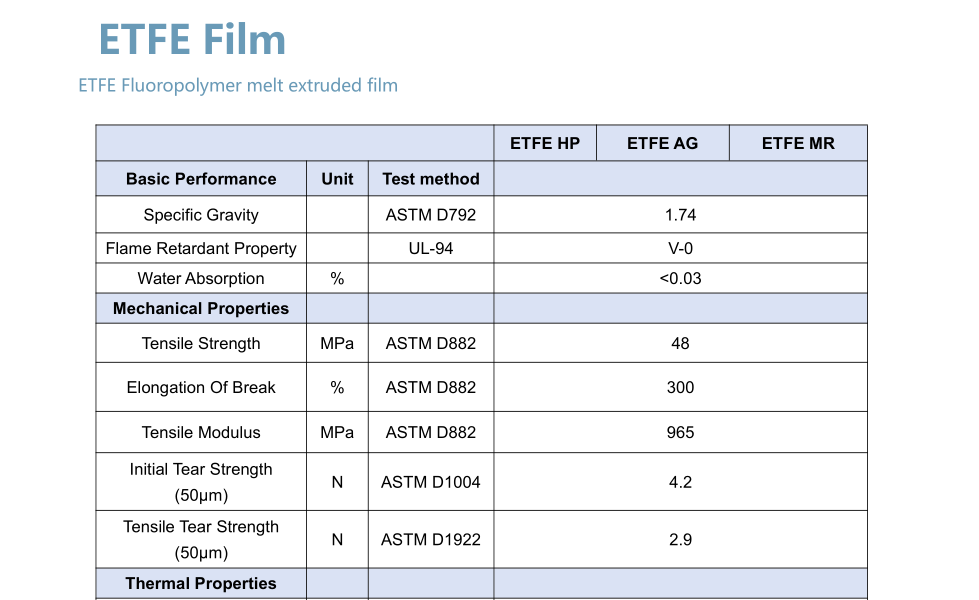

• ETFE Film Specifications

• Thickness range from 12μm to 500μm

• Standard width up to 1600mm

• Any syncopated widths available upon request

• Adhesive surface: plasma treatment and chemical etching treatment

• ETFE Film Applications

• Composite release film

• Chemical process and equipment

• Hot sealing/packaging/heat welding/hot melt adhesive

• Architecture/Greenhouse • Electrical / Electronics house

• Photovoltaic / Solar • Protection and interior

• Medical / Pharmaceutical Industry

• Semiconductor

ETFE Film Classification

• ETFE HP (High Performance Grade)

• Manufactured from 100% High-purity grade ETFE resin

• Often used in high dielectric properties or optical transparency applications

• A unique combination of transparency, high light transmission and long-term aging resistance

• A unique combination of high light transmission, clarity, and durability make it an invaluable material for applications such as semiconductors and integrated circuits

• Made into clear one-side matte or double-side matte styles

• Suitable for decoration and anti-graffiti materials

• ETFE MR (Mold Release Grade)

• Good release film and keeps excellent non-stick properties process in high temperature

• High elongation and excellent fit softness to complex contoured molds

• Standard colors include red light blue matte and white, custom colors available upon request

• Available in a variety of perforated patterns

• Surface area weight lower than 20% FEP film.

• ETFE AG (Architecture Grade)

• Excellent properties of UV resistance, chemical inertness and non-stick properties

• Excellent mechanical properties applied in agriculture and buildings
