Custom lightweight and ultra-thin solar flexible panel solar module 200W
- DONGKE
- HANGZHOU,CHINA
- 7-15DAYS
- 1.5GW
1. Lightweight & ultra-thin for low-load projects.
2. Customizable for diverse scenarios. Ultra-flexible with thin silicon chips & advanced polymers, fitting curved roofs perfectly.
3. Easy/fast installation cuts transport/installation costs.
4. High-efficiency, reliable with excellent low-light performance.
5. Lead-free, eco-friendly (green production & materials).
Custom lightweight and ultra-thin solar flexible panel solar module 200W
Long lasting and stable quality.
Through various long-term reliability tests.
ISO 9001,ISO 14001 and ISO 45001.
The reliability of components is effectively ensured under EL test before and after lamination.
Fully automatic production line and the leading photovoltaic technology.
Warranty 1 year.
Specifications:
| Optimum power [Pmax] | 200w | ||
| Operating voltage [Vmp] | 18v±0.1V | ||
| Operating current [Imp] | 11.11A±0.5A | ||
| Short-circuit current [Isc] | 12A±0.5A | ||
| Open circuit voltage [Voc] | 21.6V±0.8V | ||
| Temperature coefficient voltage | (0.065±0.015)%/℃ | ||
| Temperature coefficient current | -(160±10)mA/℃ | ||
| Temperature coefficient power | -(0.5±0.05)%/℃ | ||
| Maximum system voltage | 1000V | ||
Mechanical characteristics: | |||
| Size: 1550mm*700mm*2mm | |||
| Cell type: 166 CHAMFERED SINGLE CRYSTAL CELL | |||
| Conversion Eff.rate: 22.5% | |||

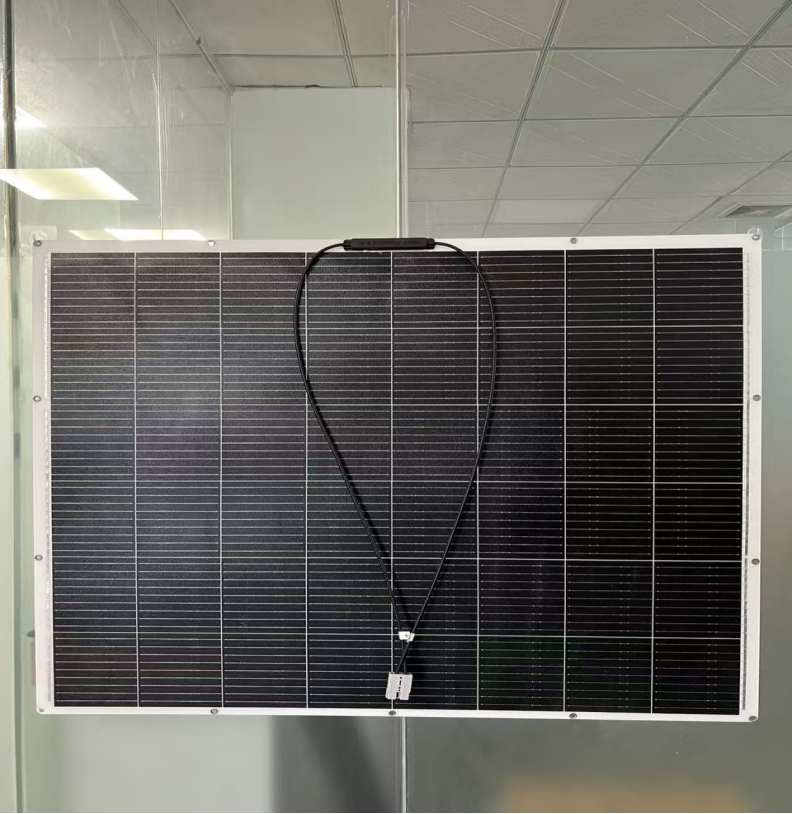

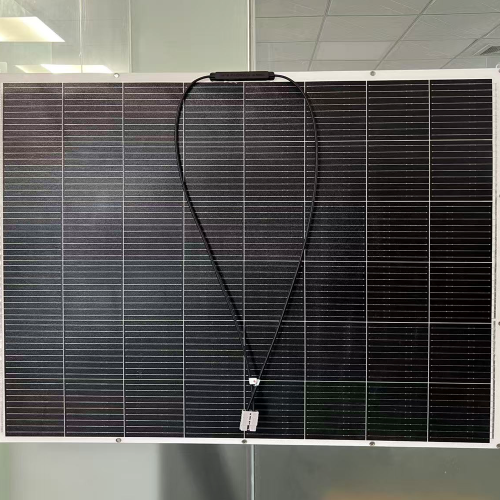

Physical picture :
| |||
