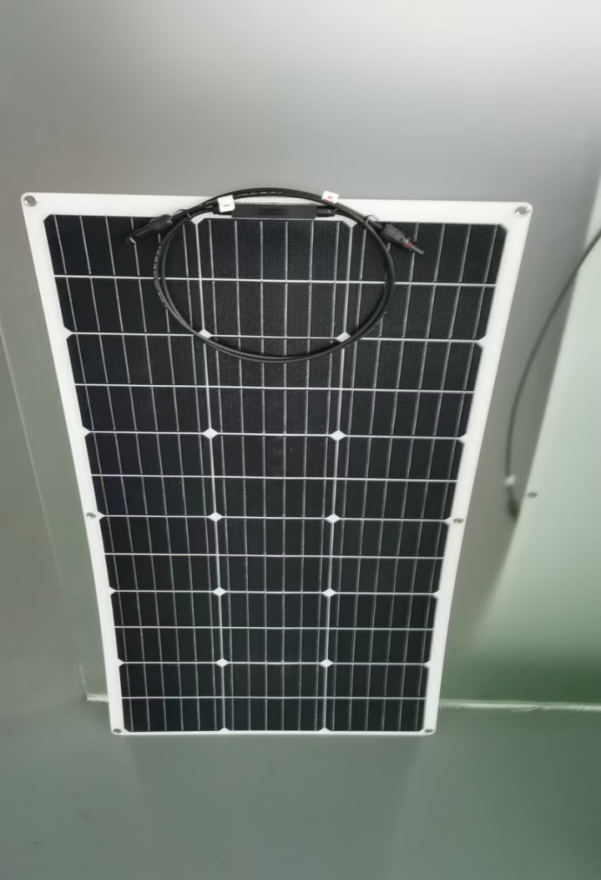

160-170W·Monocrystalline high-efficiency cell flexible PV module
- DONGKE
- HANGZHOU,CHINA
- 7-15DAYS
- 1.5GW
Product characteristics
1.Lightweight and ultra-thin design
The component weight is as light as 3.12kg in weight and as thin as 3mm, meeting the requirements of various low load projects.
2.Customization
Products can be customized to meet the needs of different application scenarios.
3.Ultra high flexibility
With ultra-thin silicon chip and advanced organic polymer materials, the component can perfectly fit various curved roofs.
4.Easy installation
Due to convenience and quickness, the costs of installation and transport are greatly reduced.
5.Efficient and reliable
It is improving the battery conversion efficiency. The power generation performance is excellent under low light conditions.
6.Plumbum free environmental protection
Base on the concept of green environmental protection, the production process and materials achieve plumbum free.
160-170W·Monocrystalline high-efficiency cell flexible PV module
Long lasting and stable quality
Through various long-term reliability tests
ISO 9001,ISO 14001 and ISO 45001
The reliability of components is effectively ensured under EL test before and after lamination.
Fully automatic production line and the leading photovoltaic technology.
| Electrical Performance Parameter（STC） | ||||||||
| Typical type | ||||||||
| Max power(Pmax) | 160w | 165w | 170w | |||||
| Max power voltage(Vmp) | 32.175 | 32.395 | 32.725 | |||||
| Max power current(Imp) | 5.155 | 5.21 | 5.305 | |||||
| Open circuit voltage(Voc) | 37.455 | 37.675 | 38.005 | |||||
| Short circuit current(Isc) | 5.52 | 5.454 | 5.57 | |||||
| Max system voltage | DC1500V | |||||||
| Maximum series fuse rating | 20A | |||||||
| Mechanincal Data | ||||
| Dimensions | 1180*1680*1120mm | |||
| Weight | 3.12kg | |||
| Front film | Lightweight high transparent polymer materials | |||
| Output cables | 4m㎡ | |||
| Cell type | Mono crystalline silicon 11（166/2）*5 | |||
| NOTC | 25±2℃ | |||
